Furnaces

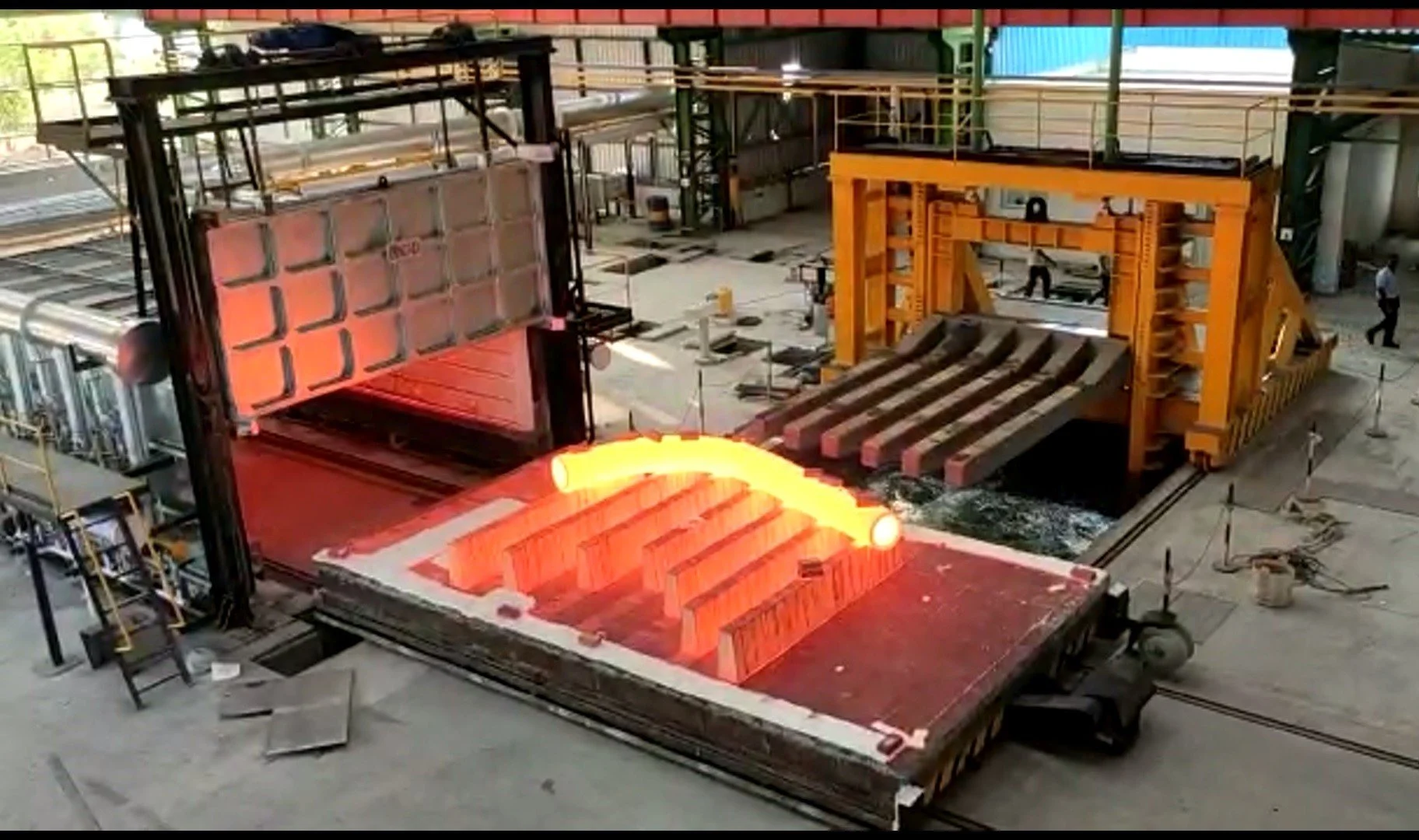

Gas Fired Bogie hearth Furnace

Capacity : 15 Tons
Size : 4000 L x 2200 W x 1800 H mm
Operating temperature : 1220°C
Year of Installation : 2017

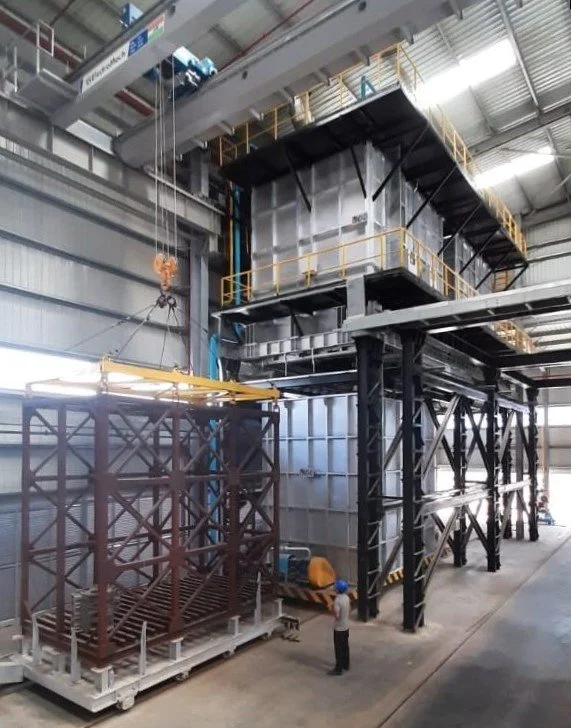

Drop Bottom furnace for solutionizing of forged aluminium rings

Capacity : 3 Tons
Year of installation : 2014
Size : 1800 D x 1250 H mm
Temperature : 750°C

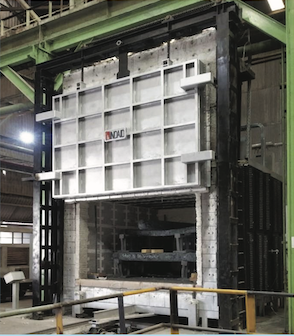

Electrically heated Box type Heat treatment furnace with Quench Fork

Capacity : 1 Ton
Size : 1000 L x 1500 W x 900 H mm
Temperature : 1100°C
Year of Installation : 2014

Gas fired Box furnace with quench fork for water quenching of Stainless Steel castings

Capacity : 3.5 Tons.
Size : 2400 L x 1800 W x 1600 H mm
Temperature : 1250oC
Year of Installation : 2016

LPG fired continuous melting furnace for zinc billets

Holding Capacity : 6000 Kgs.
Output rate : 1000 Kgs/hr
Size : 2000 L x 1400 W mm
Temperature : 700oC
Year of Installation : 2014

LPG fired Continuous Pusher type furnace

Size : 2400 L x 900 W x 900 H mm
Temperature : 1150°C
Year of Installation : 2009

Vacuum furnace for Heat treatment of tools, Dies and High Speed Steels

Batch Capacity : 400 Kgs& 600 Kgs.
Temperature : 1350oC

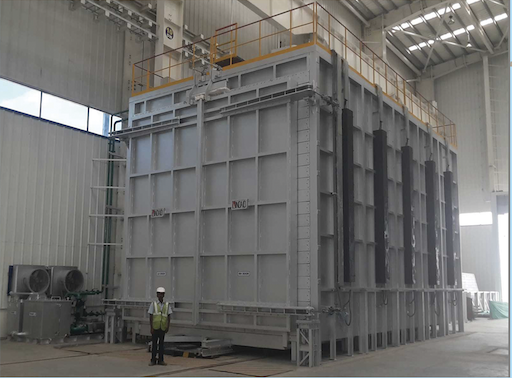

Electrically heated Bogie hearth furnace with intermittent door

Capacity : 110 Ton
Size : 12000 L x 5000 W x 5000 H mm
Temperature : 800°C
Heat load : 1680 KW
Year of Installation : 2016
